Toyhead Auto Restoration Services

Toyota Specialist

Engine
Parts For Toyota 8R, 8RC, 18R, 18RC, 18RE, 18RU

Please note: this web page is new.
We have many other OEM type engine replacement parts that are not listed on this page.

For inquiries contact us at:
rick@toyheadauto.com

---------

Our Payment Options Are Listed At The Bottom Of This Page.
Or Just Click here.



Custom Made Performance Camshaft Grind Service.


Send us your good used cam (core) and Toyhead Auto's experienced team can custom grind your cam to any performance specification profile you want.  From smog legal performance to full out racing. If you are not sure of the duration and lift you want.  Just tell us at what R.P.M. you want peak power. What you are using your vehicle for and we will do the rest.  Depending on your application prices are about $186.00 per cam.

For more info email: rick@toyheadauto.com



Toyhead Auto Camshafts

All cams below are made to order and ground exclusively for Toyhead Auto Restoration Services.


Hi-Performance Camshaft.
$145.00 USD plus core charge $65.00

Cam No. 13511-33906 This is a new regrind, It is legal in "stock lift" racing classes.  The duration is what gives you the huge advantage over the stock camshaft.

The specs are 220’ duration @ .050 .410 lift. Rpm range 1500-4800 during the crucial torque area. No new springs needed. No problems with passing emissions or idle. This is about as good as it gets when it comes to performance and still being able to pass.



Camshaft Bearing Set  $57.73 USD


Standard size.




Valve Springs $118.00 USD



Valve Spring Set .
Set of dual springs, 8 inner and 8 outer springs


Valve Seals $25.38 USD

Valve Seals High Performance 20R, 21R, 22R,
                      22RE


Valve Keeper / Retainers $42.16 USD

Toyota valve keeper / retainer

Full set.



Valve Guides $50.13 USD

Valve guide 20R, 21R, 22R, 22RE

Standard Valve Guide Set of 8


Cylinder Head Gaskets

Toyota 18R head gasket

Standard High Quality Replacement $20.00 USD

---------------------------------------------------------------

High Performance Muli-Layer Steel (MLS) Cylinder Head Gaskets (special order)

92mm Bore .043 inch Thickness $82.84 USD
92mm Bore .059 inch Thickness $82.84 USD

The MLS gasket is comprised of three layers of Stainless Steel. Stainless steel for increased strength, it’s ability to rebound and corrosion resistance. The outer layers of the gasket are embossed and coated on both sides with a flouroelastomer rubber based material (Viton) designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 2500C or 4820F. The center or shim layer of the gasket is comprised of an uncoated Stainless Steel layer, which can be varied to accommodate multiple thickness requirements. The MLS gasket is ideal for both aluminum heads to cast iron blocks and aluminum heads to aluminum blocks. The composition of MLS will also withstand the shearing forces created by aluminum heads on cast iron blocks. No re-torque is necessary. By design the MLS gasket promotes an even torque load across the sealing surface allowing for measurable reduced bore distortion. *CFM-20* A perforated steel core with an elastomer surface is ideal for head gaskets allowing heat to be drawn evenly across the gasket surface while providing maximum sealing characteristics when exposed to coolants and oils.



Timing Gear Complete Set for 8R, 8RC, 18R, 18RC 18RU Engines  $251.86

Includes Camshaft Sprocket, Crankshaft Sprocket, (2) Jack shaft Sprockets, (2) New tensioners, Guide Rail, (3) Timing Cover Gaskets (not shown), (2) oil seals (not shown) and (2) Timing Chains. These are high quality set for running long and hard.

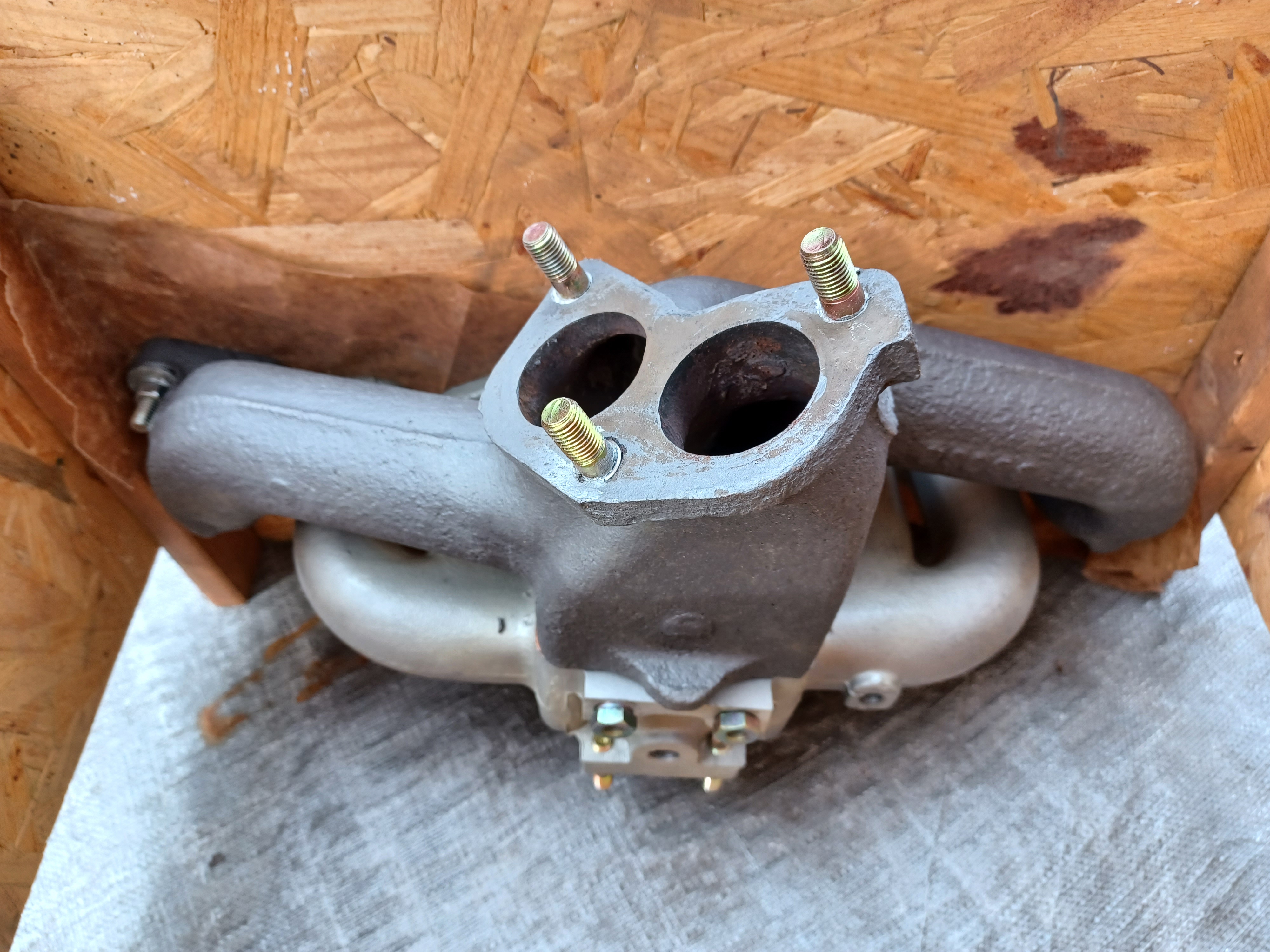

Exhaust Manifold Assembly (Remanufactured) $546.00 USD

Exclusively refurbished for Toyhead Auto Restoration Services. These manifold are guaranteed to fit nicely with no problems. All good tread inserts and studs. The mounting surface to the head has been precision milled for a flush fit.

Exhaust Manifold Hardware and Gasket Kit $73.90 USD
for above exhaust and Intake Manifold installation. Comes with nuts, bolts and gaskets

Exhaust Pipe Flange Gasket  $8.50 USD



Intake Manifold Gasket $37.00 USD



Engine Oil Pan Gasket  $33.66 USD



Engine Complete Over Haul Gasket Kit $127.50 USD

Contains all the gaskets and rubber seals you need for a complete rebuild of the motor.


Engine Bearing Set $140.00 USD

Complete bottom end engine bearing set
Includes main, connecting rod and trust washer bearings.


Super Strength Connecting Rod Bolts $45.62 USD

Features:

Material: 8740 CHROME MOLY
Tensile strength: 210,000 psi.
Forged using only the finest quality materials
Heat-treated using special vertical racks to assure complete 360° penetration.
Threads rolled after heat-treat to provide up to 10-times longer fatigue strength.
Precision CNC-machined to exacting specifications.
Specially designed for optimum reliability.


Complete Clutch Kits

Complete Clutch Kit OEM Replacement Type $149.28 USD


Comes with Clutch disk, pressure plate, alignment tool, through out bearing and pilot bearing

----------------------------------------------------------------

High Performance Clutch Stage 1 Design $280.50 USD

Torque Capacity: 259 ft/lbs



The SPEC Stage 1 Clutch Kit features an integrally molded carbon kevlar-based, high performance organic lining that offers smooth engagement and excellent life. This lining has an integrally bonded steel backing for strength under high clamp loads and temperatures. The hub is double sprung with spring cover relieves for flexibility and heat treated components for strength and durability. Best for street and many track/off-road applications.
*Features*
* High clamp pressure plate
* Steel-backed and multi-compound woven organic material
* High torque sprung hub and disc assembly
* Bearing and tool kit (select models, please inquire)
*Types of Driving*
Street, Drag, Drift, Road Race, Rallye, Pulling, Autocross

----------------------------------------------

High Performance Clutch Stage 2 Design $326.70 USD
Torque Capacity: 290 ft/lbs




The SPEC stage 2 Clutch Kit Features segmented or full faced pure Kevlar disc with steel backing. This lining features excellent drivability like the stage 1, but offers slightly longer life and higher torque capacity. The hub is double sprung with spring cover relieves for flexibility and heat treated components for strength and durability. Best for street, drag, pulling and autocross.
*Features*
* High clamp pressure plate
* Pure Kevlar friction material
* High torque sprung hub and disc assembly
* Bearing and tool kit (select models, please inquire)
*Types of Driving*
Street, Drag, Pulling, Autocross

------------------------------------------------

High Performance Clutch Stage 3 Design $310.84 USD
Torque Capacity: 336 ft/lbs




The SPEC Stage 3 Clutch Kit features a carbon semi-metallic 6 puck sprung hub or rigid disc (depending on application) that has been the leading puck clutch in drivability, life and torque capacity. This unit is designed for street and race cars that require an aggressive but streetable engagement and high torque capacity. The hub is double sprung with spring cover relieves for flexibility and heat treated components for strength and durability. Also available in 3 puck configuration. Great for street, drag, road racing, pulling, rallye and drift.
*Features*
* High clamp pressure plate
* Carbon-Graphite Friction Material
* High torque sprung hub and disc assembly
* Bearing and tool kit (select models, please inquire)
*Types of Driving*
Street, Drag, Pulling, Autocross




Heavy Duty / Racing Radiator All Aluminum 8R, 18R, 18RC, 1971-74 Celica $318.85 USD





Radiator Cap $8.00 USD

Radiator Hose Upper $17.50 USD
Radiator Hose Lower $27.87 USD

Radiator Clutch Fan $96.90 USD

Thermostat Standard temp 180F $9.36 USD
Thermostat High Performance temp 160F $22.95 USD



Performance Air filter $50.95 USD

Toyota Air Filter 18RC 8R 18R Performance

FEATURES:

Easy High Performance Add-on
High Air Flow with Excellent Filtration
Designed to Increase Horsepower and Acceleration
Washable and Reusable. Lasts up to 50,000 miles before cleaning is required depending on driving conditions
Million Mile Limited Warranty. Emissions Legal. Will Last the Life of Your Automobile
Environmentally Friendly
